PAC F8C Invisible Small Dog/Cat Fence Kit (Up to 20 Acres)
* Small Collar to suits Cats and Small dogs from 3.5kg to 12kg
* Large Collar to suits Dogs from up to 30kg
* Quality European made
* 4 steps to containing your pet
* Collar is waterproof (IPX 7) and rechargeable
* 4 preset output levels of stimulation
* Capacity to cover up to 20 acres with extra wire purchase.
* 1 Year Warranty
Recommended Dog Breeds examples (Over 6 months)
*French Bulldog *Mini Dachshund *Chihuahua *Fox Terrier *Bichon *Corgi *Pug *Cavalier King Charles *Maltese *Scottish Terrier *Jack Russel *Beagle *Kelpie
- 150 metres wire and 50 training flags
- PAC FC4 standard Transmitter (battery backup option)
- Power adapter for transmitter
- USB charging station with magnet charging clip for Collar
- Tiny, waterproof (IPX 7) and rechargeable F8C Collar (receiver)
- 1 pair of long and short probes for dogs/cats
- Instruction Manual
PAC Mini Invisible Fencing for Dogs/Cats:
- 4 steps to containing your pet
- Suitable for cats and dogs up to 30kg
- Compatible with PAC F6C collar for large stubborn dogs
- Warning tone & 4 preset levels of stimulation
- Capacity to cover max 20 acres with purchasing extra DogMaster Thick gauge wire
- Lexan plastic collars for superior durability
- Battery backup protection
- Adjustable fencing boundary width
- Digital Signal Processing for complete immunity to outside radio interference
- 1 Year Warranty
The new PAC mini containment system is one of the smallest rechargeable invisible fencing for small dogs and cats from 3.5kg. This PAC mini system is also compatible with the Standard PAC F6C collar. This means you can use two different size collars with the same system to suit a wider range size of dogs. The PAC mini fence provides the perfect solution to keep your escaping dogs and cats in a fixed area around your property. Each escaping dog and cat that needs to be contained wears an active F8C or F6C fence collar. The F8C collar is designed to pick up the radio signal from boundary wire when the dog/cat is close to the invisible fence. The wire can be twisted to cancel the signal when running across a lawn and re-opened by single wire to protect designated areas such as garden beds. All the PAC dog containment system comes with 150 mtrs wire & flags.
How does it work?

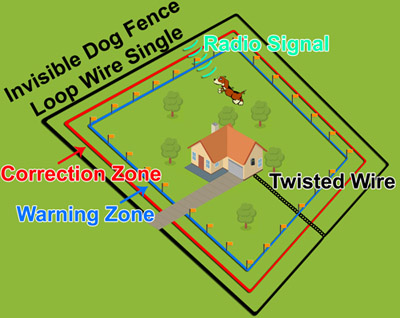

PAC mini containment system is an effective boundary system to stop your cat/dog escaping. Whenever a cat/dog enters the preset Active Zone (adjustable from 30cm - 3 metres from the wire), the F8C collar receives a radio signal, then it emits an audible beep or warning tone to warn the cat/dog. If the it challenges the warning tone and walks past the training flags into the next zone, it will feel the first level of static correction, if it stays in the area or continuously walks into the next zone, it will receive the next level of correction. The longer the dog is within the active zone; and the closer his proximity to the wire; the greater the intensity of the deterrent stimulation. Thus, the dog self-elects to approach the boundary; and if he runs towards the boundary wire, the system activates a higher static correction immediately. The PAC F8C collar will turn itself off after 10 seconds continuous stimulation.
Learn more about invisible dog fence:
Electronic Control Unit - FC4(Transmitter)
The transmitter is not water resistant and needs to be mains powered. It is recommended to installed indoor or undercover. Transmitter box generates radio signals for the loop-wire. The output of transmitter determines the Active Zone width as well as amount of wire that can be used in the system (coverage). The boundary width can be adjusted and monitored at the transmitter. The FC4 comes with “inbuilt” battery backup which can be powered by 2 x 9 volt batteries when normal power supply fail.

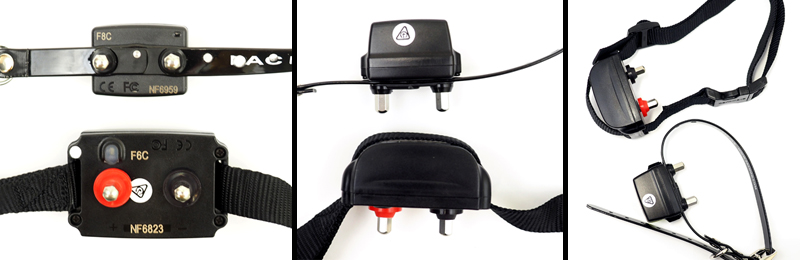

Electronic Dog Collar Unit F8C (Receiver)
The improved PAC mini F8C collar is equipped with a fast charge lithium battery. It is a very small collar compared with the standard F6C collar. It adds ability to charge the collar via standard USB ports or any USB power adaptors which allows charging multiple collars in the same time while the F6C collar is charged on the top of transmitter. It can only charge one collar each time.
Loop Wire – antenna wire
The PAC fence comes with DMT 1.5mm gauge wire. This PVC covered wire that can be purchased direct from us or your local electrical wholesaler if you need more than 100 metres length. The two ends of the loop connect to the transmitter box. Along the boundary and enclose all or part of your garden, paddock or estate, and give your dog freedom to run within it.
Area and Perimeter conversion table
|Area in Acres||Perimeter Approx||Number of DMT 100 Metres Wire
|Total length of wire|
|1||254 metres||3||300 metres|
|2||360 metres||4||400 metres|
|2.5||402 metres||5||500 metres|
|3||441 metres||5||500 metres|
|4||509 metres||6||600 metres|
|5||569 metres||6||600 metres|
|6||623 metres||7||700 metres|
|7||673 metres||8||800 metres|
|8||720 metres||8||800 metres|
|9||763 metres||8||800 metres|
|10||805 metres||9||900 metres|
|11||844 metres||9||900 metres|
|12||881 metres||10||1000 metres|
|13||917 metres||10||1000 metres|
|14||952 metres||10||1000 metres|
|15||986 metres||11||1100 metres|
|16||1018 metres||11||1100 metres|
|17||1049 metres||11||1100 metres|
|18||1080 metres||12||1200 metres|
|19||1109 metres||12||1200 metres|
|20||1138 metres||12||1200 metres|
Videos Hide Videos Show Videos
1 Review Hide Reviews Product Reviews
We have 2.5 acres and I have run the wire around the existing fence and it seems to be very effective.
